Solvent Recycler RAF 150

X

Description

The RAF 150 solvent distiller is a device that has been designed for companies that use (contaminate) the solvent in the production process in an amount of at least 150L per so-called 1 shift. The RAF 150 distiller enables the distillation of approx. 300 liters of contaminated solvent in a period of 9 hours, through the use of sight glasses and a loading pump from substances such as: paints, oils, fats, resins.

The installation of the above-mentioned additional elements enables two distillations to be carried out, without a break related to cooling the oil, and without opening the tank cover.

After the first distillation is finished, you can fill the tank with a new „portion” of dirty solvent, checking its level through the sight glasses.

Distillation bags are used in the RAF 150 solvent distillers. The use of bags means that the interior of the distiller tank is not dirty and can be easily emptied. The bags ensure that the operator does not come into contact with the distillation waste.
The RAF 150 solvent distiller has the function of two distillation times and the ability to set two appropriate oil temperatures for T1 and T2. This is a very useful function that is used when distilling a mixture of solvents with a large boiling point difference.

The method of operation is presented in the instructional video on the REDUX website.

The RAF 150 series distillers are manufactured by Redux in Poland in accordance with the strict standards of the European Union and have ATEX certificates.

Equipped with the RAF 150 solvent distiller, there is a tank with a working capacity of 150 liters and a lid that is made of INOX stainless steel. The 150L capacity is the actual loading capacity of the RAF 150 solvent distiller.

The RAF 150 solvent distiller can be equipped with a Vacuum device, which enables distillation of high-boiling solvents.

Technical specification

Additional equipment

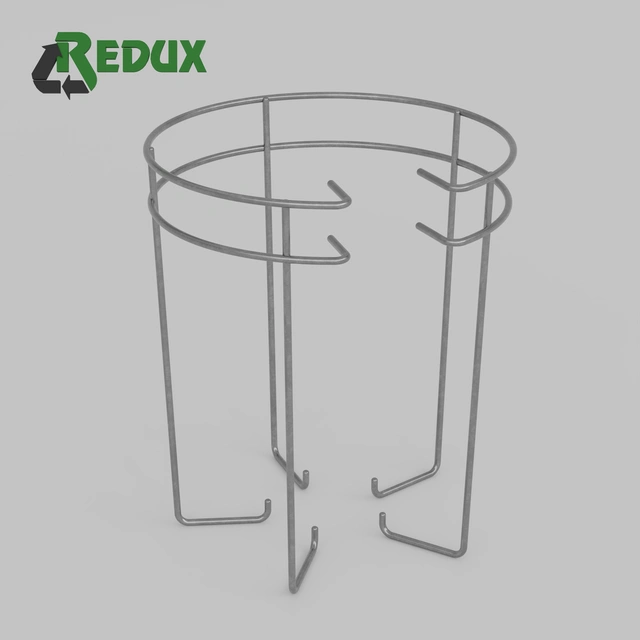

Clip

The expanding ring is used to support and correctly position the Redux Bags distillation bag in the distiller tank.

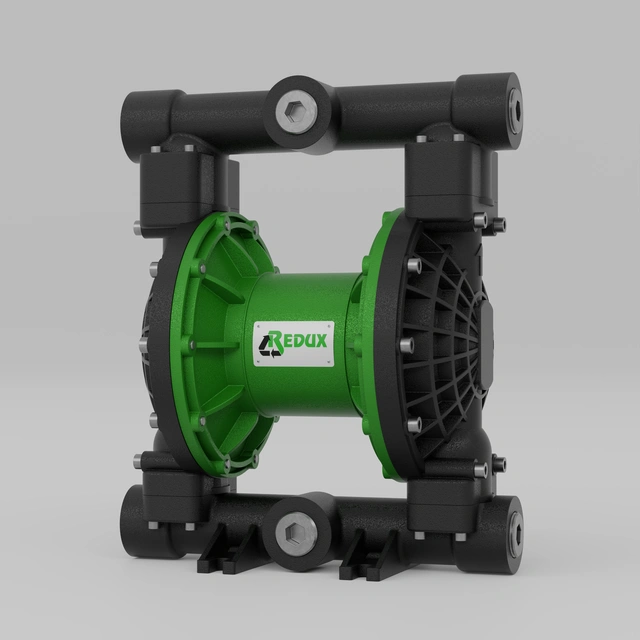

Loading pump

The solvent-resistant pneumatic loading pump is used to fill the tanks of the RAF Series distillers with the liquid intended for distillation.

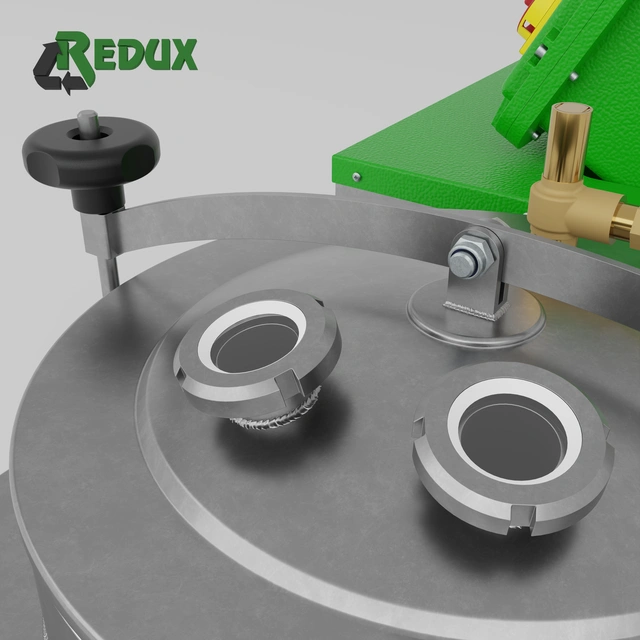

The sight glasses

The sight glasses are mounted in the lids of the RAF Series distillers to allow observation of the distillation process and to allow the loading of dirty solvent or water using the loading pump in the distillers without the maximum level float.

Pneumatic and electric vacuum

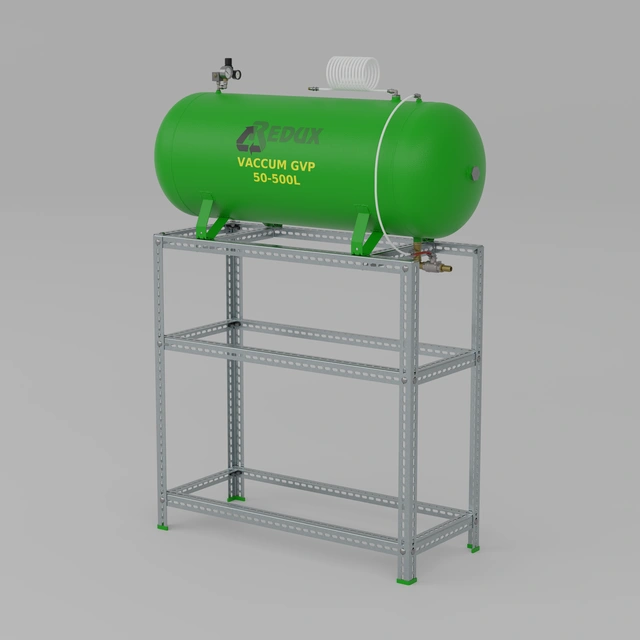

Vacuum device is used for the distillation of high-boiling solvents with a boiling point above 160 ° C. The use of Vacuum lowers the boiling point of the liquid by about 20-25%. We use Vacuum vacuum devices powered by air or electric in our distillers.

DTR video

DTR

• Instructions for use RAF 150 (pdf)

Exploitation materials

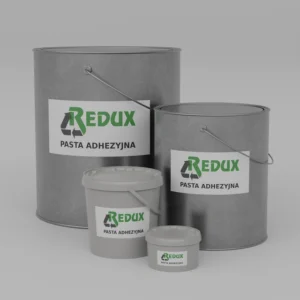

The anti-adhesive

Application:

The anti-adhesive paste is intended for use in solvent distillers. The paste covers the inside of the distiller barrel to prevent paint pigments and other contaminants from sticking to the walls.

The paste also prevents the distillation bag from sticking to the walls of the boiler (digester) in the event of dirty solvent getting outside the bag (e.g. incorrect filling of the above-mentioned boiler).

Types of packaging: 210ml, 1kg, 4.5kg, 10kg

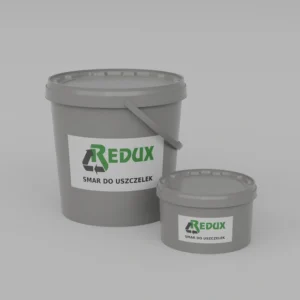

Gasket grease

Application:

Gasket grease is used to prevent the gasket from sticking to the edge of the tank, as well as to improve the sealing between the gasket and the edge of the distiller tank.

Types of packaging: 200ml, 1 kg

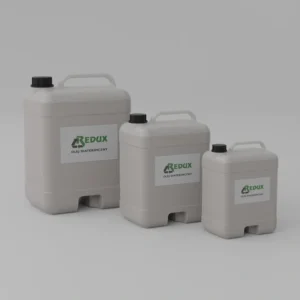

Diathermic oil

Application:

We use diathermic oil in solvent distillers as a medium to transfer the heat generated by electric heaters to heat the heating boiler (distiller cooker) which then brings the solvent contained in it to a boil.

Oil in solvent distillers is changed every 1000 hours of device operation or every 12 months, whichever comes first.

Types of packaging: 5L, 10L, 20L

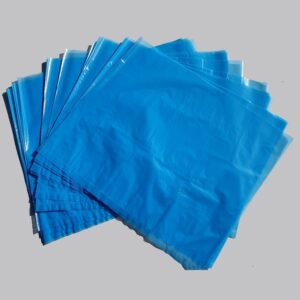

Distillation bags

Application:

REDUX BAGS distiller bags are used in all solvents commonly used in the industry, the boiling point of which does not exceed 200°C. We offer bags with dimensions matching the distillers of all manufacturers.

The bags are used for:

• Elimination of the risk of deposition of distillation waste on the walls of the tank
• Reduce staff costs and time by making it easier to clean the distiller tank
• They minimize the operator’s contact with distillation waste and minimize its impact on the environment

Dimensions:

We offer distiller bags for all types of distillers with a tilting and replaceable tank.

Photos

For download

• Dimensions RAF 150 (pdf)
